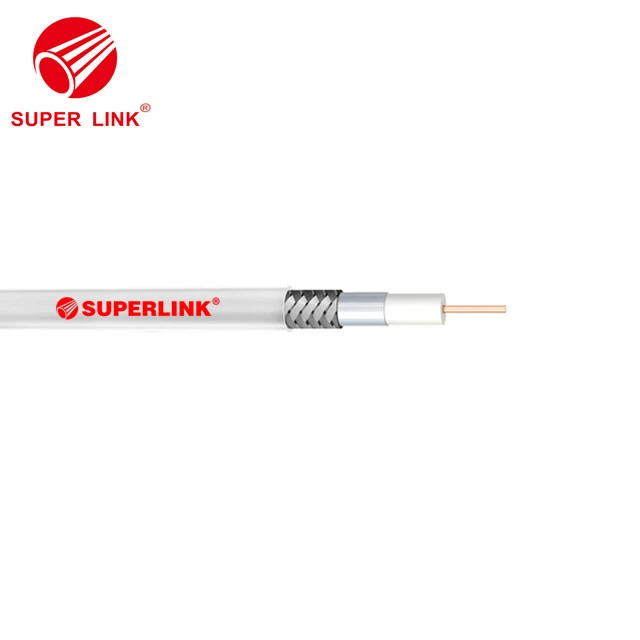

Dual rg6 kabelini tugatish
Dual RG6 CATV koaksial kabel ilovasi
CATV/CATV tizimlarida foydalanish

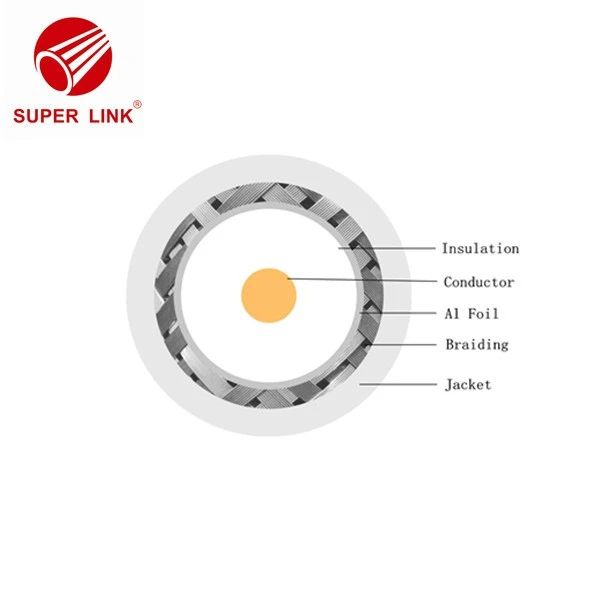

Qurilish parametrlari
Markaz dirijyori | 2 * 1,02 mm / 18AWG mis qoplamali po'lat |
Dielektrik | 4,57 mm ko'pikli pe |
Qalqon 1 | Alyuminiy folga |
Qalqon 2 | 60% Al-mg sim |
Kurtka | 0,268±0,006/7,2±0,15 mm PVX (CMR yoki CM) |
Ko'ylagi qalinligi | 0,030/0,76 mm |
UL | CMX/CM/CATV/CL2/CMR |
Jelly/APD | Mijozning maxsus talabiga ko'ra |
Elektr xususiyatlari
Spiker testi | 4000VAC |
Imkoniyatlar | 54 ±3 pF/m |
Empedans | 75 ± 3 Ω |
Yo'qotishlarni qaytarish | 20dB min (5-2300MHz) |
Tarqalish tezligi | 82%(daq) |
Zaiflash (20 ℃)
Chastota (MHZ) | Maksimal zaiflashuv (dB/100ft) | Maksimal zaiflashuv (dB/100m) |
5 | 0.58 | 1.9 |
100 | 2.0 | 6.5 |
200 | 2.8 | 9.2 |
700 | 5.6 | 18.4 |
1000 | 6.5 | 21.4 |
1800 | 8.5 | 27.9 |
2250 | 10.0 | 34.0 |
